ROV Panel Components

A unified solution for subsea intervention and control system reliability.

Contact Sales

Join leading operators maximizing reliability with our advanced drilling solutions

CONTACT SALES

TSC-01993

Dummy Stab for API 17H ROV Receptacle Type B (Single)

Technical Documents

Dummy Stab for API 17H ROV Receptacle Type B (Single). Polymer Construction. Ported and Detented

TSC-00096

ROV Dummy Stab, Non-Ported, API 17H, Type B, Single

Technical Documents

Dummy Stab for API 17H ROV Receptacle. Type B (Single):. Nitronic and Stainless Construction

TSC-01177

ROV Dummy Stab, Non-Ported, API 17H Type A, Dual

Technical Documents

Dummy Stab for API 17H ROV Receptacle Type B (Dual). Nitronic and Stainless Construction

TSC-02611

Hot Stab Assembly, with J-Lock, API 17H

Technical Documents

Type 17H, Single Port, High Flow. 5,000 PSI Rated Working Pressure 3/4" NPT Female with 3/4" NPT x 3/4" JIC 45 Degree Adapter, J-Lock Stems are Threaded and Removable. Nitronic and Stainless Construction

TSC-00212

ROV Stab Assembly, Dual Port, 1/2" NPT Port

Technical Documents

Type 17H, Dual Port. 5,000 PSI Rated Working Pressure 3/4" NPT Female with 3/4" NPT x 3/4" JIC 45 Degree Adapter, J-Lock Stems are Threaded and Removable. Nitronic and Stainless Construction

TSC-01194-J

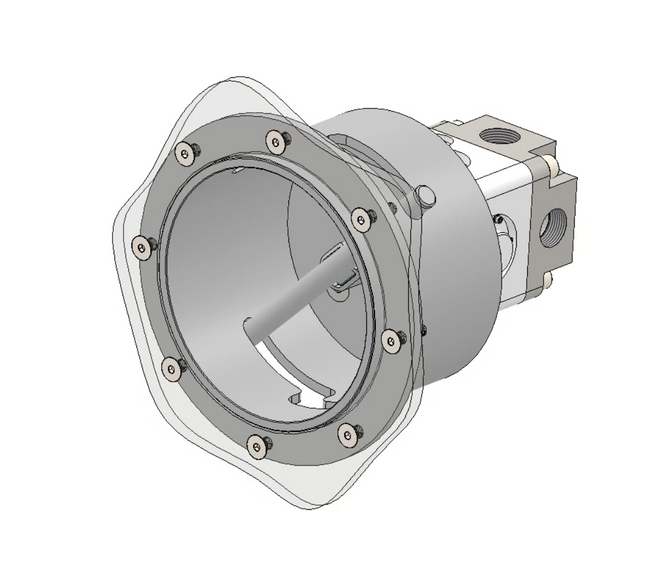

Receptacle with J-Latch, High-Flow Assembly, Female, 1" SAE Port

Technical Documents

API 17H High Flow Single Port Receptacle with J-Hook Latch: Assembly Including Mounting Bolts, Nuts, Washers, and Split Ring, Nitronic and 316 Stainless Construction Designed to be Installed on 1/2" Plate, 5,000 PSI Working Pressure, 1" Female SAE Outlet Port

TSC-01194

Receptacle, High-Flow Assembly, Female, 1" SAE Port

Technical Documents

API 17H High Flow Single Port Receptacle. Assembly Including Mounting Bolts, Nuts, Washers, and Split Ring, Nitronic and 316 Stainless Construction Designed to be Installed on 1/2" Plate, 5,000 PSI Working Pressure, 1" Female SAE Outlet Port

TSC-01233

Receptacle, High-Flow Assembly, Female, 1/2" SAE Port

Technical Documents

API 17H Dual Port Receptacle. Assembly Including Mounting Bolts, Nuts, Washers, and Split Ring, Nitronic and 316 Stainless Construction Designed to be Installed on 1/2" Plate, 5,000 PSI Working Pressure, 1/2" NPT Ports

TSC-01477

Receptacle, High-Flow Assembly, Female, Dual 1/2" NPT

Technical Documents

API 17H Dual Port Receptacle. Assembly Including Mounting Bolts, Nuts, Washers, and Split Ring. Nitronic and 316 Stainless Construction. Assembly Is Designed to Be Installed on " Plate. 5,000 PSI Working Pressure
" NPT Port

TSC-01537

Valve Bucket Assembly, 1/2" Ball, 10K, 2-Way, 90 Degree, 3/4" NPT

No Technical Document

ROV Operable Ball Valve: Includes Receptacle and Valve 1/2" Ball Valve, 2-Way, 10,000 PSI, 3/4" NPT Outlets

TSC-02731

Valve/Bucket Assembly, 1/2" Ball, 10K, 2-Way, 90 Degree, 1" NPT

No Technical Document

ROV Operable Ball Valve. Includes Receptacle and Valve 1/2" Ball Valve, 2-Way, 10,000 PSI, 1" NPT Outlets

TSC-01968

Valve Bucket Assembly, Selector, Closed Center, 1" NPT

Technical Documents

ROV operable selector valve includes receptacle and valve. Closed Center

TSC-01969

Valve Bucket Assembly, Manipulator, 1" NPT

Technical Documents

ROV Operable Manipulator Valve. Includes Receptacle and Valve

TSC-01538

Valve Bucket Assembly, with 1" Ball Valve and 1" Code 62 Pipe Socket Weld Adapters

No Technical Document

ROV Operable Valve. Includes Receptacle and Valve. 1" Ball Valve and 1" Code 62 Pipe Socket with socket weld outlets

Engineered for Maximum Reliability in Subsea Operations

Our ROV Panel Components are meticulously designed to enhance operational efficiency and mitigate risks associated with control system failures in subsea environments. From hot stabs to valve bucket assemblies, each component is crafted to meet API 17H standards, ensuring durability, high performance, and compatibility. These solutions empower you to respond effectively to critical equipment failures, keeping your operations running smoothly with minimal downtime.

ROV Panel Component Key Features

API 17H-compliant engineering for reliable subsea performance

Constructed with Nitronic 60 and 316 Stainless Steel for maximum corrosion resistance

Rated up to 10,000 PSI working pressure to handle the most demanding environments

High-flow and dual-port configurations for flexibility in operation

ROV-operable designs for ease of use during intervention

Modular components for seamless integration and adaptability

Includes essential accessories like mounting bolts, nuts, and washers for efficient installation

Designed to reduce downtime and control system failure risks

Affordable and versatile, catering to various subsea applications

Reduce Downtime, Enhance Efficiency

Our ROV Panel Components provide a cost-effective solution to mitigate control system failures, ensuring uninterrupted operations. Whether you're addressing stuck solenoid valves or failed SPM valves, these panels deliver unmatched reliability and performance under pressure.

Built for Safety and Flexibility

Designed for critical subsea interventions, our ROV Panels offer versatile configurations to address a wide range of operational challenges. From wellhead connector issues to accumulator pipe failures, our solutions provide the safety and adaptability needed to keep your operations on track.
